Tiny Tacho with recall and backlight

Tiny Tacho with recall and backlight

Tap for gallery

£25.00£22.00

This product is currently out of stock


Product Information
Specification

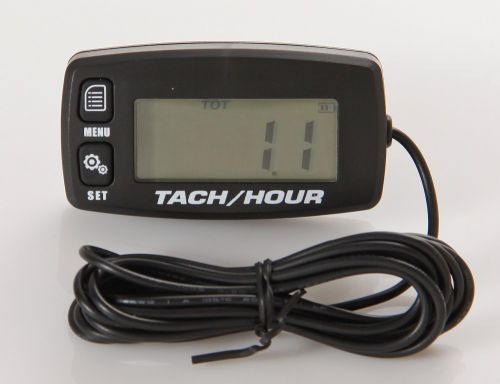

 Tiny Tach Hour Meter Tachometer with max RPM , service recall and backlight ARBTACH02RL

Description:

1· Works on Any Gas Engine;
2· Display RPM when engine is running, Display HOURS when engine is off;
3· Easy Installation – peel & stick;
4· No power  Required – connects to spark plug wire;
5· Built-in replaceable battery,Indicate battery level.
6· Large LCD display with backlight
7· Max 9,999.9 hours,Resolution 0.1 hour; 60000RPM,Resolution 10 RPM
8· Overspeed alert,Record Max RPM;
9· 100% epoxy encapsulated casing resists water.

8P1r=8 spark per revolution 6P1r=6 spark per revolution
4P1r=4 spark per revolution 3P1r=3 spark per revolution
2P1r=2 spark per revolution 1P1r=1 spark per revolution
1P2r=1 spark per 2 revolution

Can be used on most engines from single cylinder lawn mowers up to V8 engines.

User adjustable spark setting from 1 spark to 8 sparks per revolution.


Installation:



Installation


Application:

Tachometer hour meter is used for all gasoline Engine,Marine,Motorcycle,Snowmobile,ATV,Glider,Jet Ski,Lawn Mower,V8 engine.etc.


Specification:

Model Number:ARBTACH02RL
FunctionsTach/hour meter with overspeed alert and backlight
Resolution0.1Min,10RPMs
Weight98g
Rec/Displays to:99999Hrs/60000RPMs
TemperatureStandard -30°C to +85°C
ColorBlack
Case StyleSurface Mount
Battery LifeReplaceable

Competitive advantage:

1. Inductive
2. Record RPM
3. No external power required
4. User set 1, 2, 4, stroke engine
5. Waterproof,IP68
6. Replaceable battery
7. Multiple RPM type


Pictures:

tacho4tacho3inlay2 inlay tacho1  tacho5 tacho6  tacho2tacho8



Product CodeARBTACH02RL
ConditionNew
Weight0.1kg
