Tiny Tacho with recall maintnence and backlight - Resetable

£20.00

This product is currently out of stock

Product Information

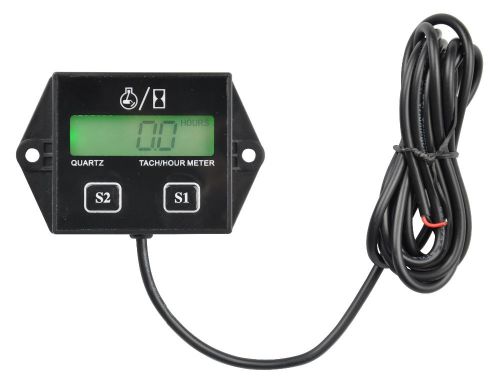

 Tiny Tach Hour Meter Tachometer with maintenence and backlight ARBTACH03RL

Description:

1. Fits all gasoline engine-- motorcycles Marine,dirt bike, Motocross,Snowmobile,ATV,Generators, Paramotors
2. Large 5 digital LCD display
3. Solid state electronics,Quartz crystal,Wide operating temperature range
4. Indicates operation in RPMs and hours,setting the maintenance interval timer
5. Self programmable or user set 1, 2, 4, stroke engine, or hour meter only
6. Works on Any Gas Engine, Hour Glass Symbol Appears and Flashes on/off to Indicate Counting Time
7. Battery changeable----CR2450
8. Easy installation
9.Wire's and button's are high quality
10.Screensaver

8P1r=8 spark per revolution 6P1r=6 spark per revolution
4P1r=4 spark per revolution 3P1r=3 spark per revolution
2P1r=2 spark per revolution 1P1r=1 spark per revolution
1P2r=1 spark per 2 revolution

Can be used on most engines from single cylinder lawn mowers up to V8 engines.

User adjustable spark setting from 1 spark to 8 sparks per revolution.


Installation:



Installation


Application:

Tachometer hour meter is used for all gasoline Engine,Marine,Motorcycle,Snowmobile,ATV,Glider,Jet Ski,Lawn Mower,V8 engine.etc.


Specification:

Model Number: ARBTACH03RL
Functions Tach/hour meter resettable and backlight
Resolution 0.1Min,10RPMs
Weight 78g
Rec/Displays to: 99999Hrs/30000RPMs
Temperature Standard -35°C to +85°C
Color Black
Case Style Surface Mount
BatteryCR2450
Size 73.5mmx47.5mmx20mm

Competitive advantage:

1. Inductive
2. Record RPM
3. No external power required
4. User set 1, 2, 4, stroke engine
5. Waterproof,IP68
6. Replaceable battery
7. Multiple RPM type


Pictures:

ARBTACH03RL3ARBTACH03RL2ARBTACH03RL ARBTACH03RL1   ARBTACH03RL4instructionsinstructions2



Product Code: ARBTACH03RL
